Exploring external contributions to the R codebase used by Roche to design and analyse late-stage clinical trials

Document is currently a draft

This is a working document, and is not yet ready for public consumption.

1 Background

In July 2021, Roche stopped development with propriety statistical software, to focus on a new backbone of R packages for the analysis of clinical trials. A 10+-year old codebase written in a propriety language (named STREAM) went into maintenance only updates, and development resources were shifted in their entirety to the new R backboned codebase, that comprised rOAK, admiral (Straub et al. 2023) and NEST (NEST 2023), which form the core of the pharmaverse(pharmaverse 2023). The design of clinical trials and exploratory data analysis at Roche has a longer history of R use, with a packages like rpact (Anders Bilgrau and Krøgholt 2023) and crmPack (Sabanés Bové et al. 2019) used for many years. This has continued to increase in recent years through initiatives like openstatsware (openstatsware 2023), that aim to collaboratively fill software gaps in clinical trial design as open source software.

1.1 Aim

In this document we explore the ROI from the perspective of an organisation, from both qualitive and quantative assessments, shedding light on the tangible benefits derived from collaborative development in the pharmaceutical domain.

2 Qualitative analysis

Regardless of whether a company open sources it’s own code, with our industries away from proprietary languages we are likely to be both depending on and extending open source software. A core question is then whether there is an added benefit open sourcing our own code, and actively contributing back to projects we use.

2.1 PHUSE guidance

The PHUSE Open Source Guidance (PhUSE 2023) document outlines the benefits of open source across 3 main points:

• Code used in clinical reporting is about the summation and presentation of insights where the process of how they were generated should be transparent. The guidance refers to this code as ‘post-competitive’ intellectual property.
• The creation of ADaM datasets and TFLs is a process that is repeated across companies, so there is the opportunity to co-create with a common goal.
• Open source software ensure outputs are reproducible without needing to purchase a licence.

Post-competitive intellectual property is a term defined in the guidance as:

A less common term we have defined to be where code collaboration improves the efficency of insights, rather than the creation of insights that would otherwise not be possible. In the context of PHUSE collaborators, this includes packages that take CDISC data and apply templated data steps and visualizations to prepare a CSR, like those seen in the pharmaverse.

2.2 Increasing acceptance

A rising tide lifts all boats embodies a position Roche took in the early days of open sourcing, with the specific intent that by open sourcing our code, and collaborating with companies, we could help regulators and our industry gain confidence in the use of open source software regardless of whether we saw external contributions back onto the code we released.

This was a strategy that worked across three layers;

1. Open sourcing our own code, and contributing to other projects we leverage
2. Meaningful support for pharma specific packages
   • Examples include allowing allocating sufficient time for employees to contribute to the codebase as a core of ‘how we work’, and the creation of a dedicated team to support the pharmaverse packages like admiral and NEST, and active investment co-founding R/Pharma and it’s non-profit Open Source in Pharma (Pharma 2023)
3. Supporting the wider R community
   • Our pharma specific R code depends on non-industry specific R packages.
   • Examples include being a platinum member of the R Consortium (Consortium 2023), and the first Pharma to co-host useR!, the main global R conference.

2.3 Mitigating risks

2.3.1 PHUSE OS guidance

The PHUSE Open Source Guidance (PhUSE 2023) document highlights several risks from open sourcing code. Many of these can be directly countered, as shown in Table 1.

Table 1: Example risks with rebuttal

Risk statement	Rebuttal
We could be liable to end users	All licences Roche use have provisions in them that explicity state the code is
Opening up our code could risk our reputation if bugs are found	Ultimately this would be in the benefit of patients if we are made aware of ways to improve the code
Open sourcing is an unnecessary risk	The risk of leaking contents from prior code can be minimised by flattening the history of the repository before release The main branch can be protected, and only allow changes through reviewed pull requests

2.3.2 EU CRA act

Another in-development complexity is the Cyber Resilience Act (Commission 2022), currently being discussed in the European Union. While we currently only have a draft of the new law, it is likely to have implications for the use and contributions to open source software by pharma companies.

Examples include;

• Execute risk assessments, including vulnerability scanning
• Have a policy and process for timely response to vulnerabilities
• A ‘bill of materials’ summarising components used
• To have this overseen by a ‘open-source software steward’, which if not roche could potentially be other entities like the R Consortium or PHUSE

2.4 Other benefits

• Many of talent graduating today (or in the last 5 years) across quantative science degrees have R and/or Python experience, and are often motivated by the idea of using common open source languages, rather than the proprietary and banking/pharma languages of the past
• We can share ideas, and get feedback from the wider community, allowing innovation to more easily impact across companies
• We can more easily collaborate with other companies, and have a common language to discuss ideas and code
• Talent can be more easily attracted to Roche, as they can see the contributions we make to the wider community, and the opportunities to work on open source projects
• Talent can more easily flow between companies, as we share more of our ADaM and TLG code

3 Quantitative analysis

As the code-base is version controlled with git, we are able to extract some information around who has made contributions, and what types of contributions those were. There are 20 packages in the pharmaverse relevant to Roche, and 6 packages from openstatsware. Across these packages, we have 203 Roche people working across 205 known Github user accounts.

In this analysis we can look at commits ( Section 3.2), lines of code (Section 3.3) and issues/commits (Section 3.4) to understand better how our code-base is influenced by individuals from outside of our own company.

3.1 Method

We maintain a list of Github handles of Roche employees used to contribute to pharmaverse packages we consider relevant to submissions within Roche or openstatsware packages used for statistical design or analysis.

The following known caveats exist with this analysis.

1. Some projects were started internally on our self-hosted git server, than migrated to github.com. This means we know the commit can be attributed to Roche, but we do not have Github user data attributed to commits generated when the project was internal only.
2. Some people have moved companies, but are still involved in the pharmaverse.
3. We are likely missing some Roche github handles, so true Roche contributions are likely to be higher.
4. When working with lines of code, some code is generated by scripts (e.g. devtools::document(), and so certain file-types are ignored) is automatically adding the majority of the code in the repo.
5. Commits are an indicator of contributions, and a single commit could range from adding key piece of functionality, to fixing a spelling mistake.

3.2 Commits

3.2.1 Commits summary

Figure 1 shows.

Figure 1:

Figure 1

Source: Article Notebook

3.2.2 Commits by package

Contributions to the Roche relevant pharmaverse
Only includes commit data for now, other forms of contribution will be added (e.g. issues)
Package	Age (y)	Roche + Externals		Roche metrics
		Contributors	Commits	% Contributors1	% Commits2	Monthly trend3
pharmaverse
diffdf	6.7	4	252	100%	100%
rtables	6.3	26	1017	92%	100%
datacutr	1.7	9	373	89%	99%
tern	7	55	2809	93%	95%
teal.modules.general	5.4	30	1255	93%	91%
teal.code	2	20	163	90%	91%
teal	7	38	2666	89%	91%
teal.modules.clinical	6.5	48	1801	94%	90%
teal.slice	2	22	303	91%	89%
admiralophtha	1.7	21	564	62%	88%
teal.data	2	23	228	91%	85%
falcon	1.3	15	142	40%	79%
admiralonco	2.1	23	1000	48%	78%
admiral	3.1	74	4335	50%	63%
admiraldev	1.7	22	626	59%	50%
xportr	3.2	9	766	44%	4%
admiralvaccine	1.5	18	1505	22%	3%
metacore	3.1	8	369	12%	1%
pkglite	3	4	87	0%	0%
metatools	2.2	3	160	0%	0%
openstatsware
rbmi	2.8	8	1008	75%	100%
jmpost	1.8	9	302	89%	93%
crmPack	9.7	20	870	50%	79%
simIDM	2.2	8	131	75%	76%
mmrm	1.9	22	333	50%	74%
brms.mmrm	1	4	267	0%	0%
Our list of github handles of Roche employees may not be complete. Our data on when employed (if they joined or left Roche) is manually added, so may not be exact. Generated with 23332 commits from 2014-06-12 to 2023-12-28.
1 Person counted if ever employed by Roche, so contributions could occur while employed externally.
2 Where a person joined or left Roche, commits are assigned to Roche only if employed when commit was made.
3 Trend in % Roche comments month to month. X axis is not fixed across packages.

3.3 Lines of code

This section looks at the lines of code per person present in the most recent version of the code. We exclude any code in the following folders in order to remove the risk of machine generated code skewing the results:

• man/
• misc/
• inst/
• data/

The number of people may differ, as in this section we are using the information from the persons .gitconfig file, rather than the Github user account information.

3.3.1 Lines of code by package

This is currently inaccurate

This data source uses information from the git commits, so we are relying on defining whether a person is Roche or not based on what email was in their .gitconfig file (or gh account if change made in github UI). This is currently very innacurate, so there are many false negatives where we miss Roche people contributing from a personal email account we do not know.

Lines of code attributed to Roche authors
Data comes from git blame of current package without /docs, man or inst folders
Package	% Roche1
pharmaverse
datacutr	100%
diffdf	100%
admiralophtha	98%
teal.slice	93%
tern	93%
teal.data	89%
teal	87%
admiralonco	83%
teal.modules.clinical	75%
admiral	68%
admiralvaccine	60%
teal.modules.general	57%
admiraldev	55%
teal.code	50%
falcon	48%
rtables	47%
xportr	17%
metacore	0%
pkglite	0%
metatools	0%
openstatsware
jmpost	100%
rbmi	98%
crmPack	90%
mmrm	64%
simIDM	63%
brms.mmrm	0%
Our list of github handles of Roche employees may not be complete. Our data on when employed (if they joined or left Roche) is manually added, so may not be exact.
1 A line of code is attributed to Roche if the person ever worked for Roche. xportr is an example where lines of code were contributed before the person joined Roche’s team.

3.4 Issues & Comments

Issues, and comments on issues, incorporates an additional form of collaboration that does not require writing code.

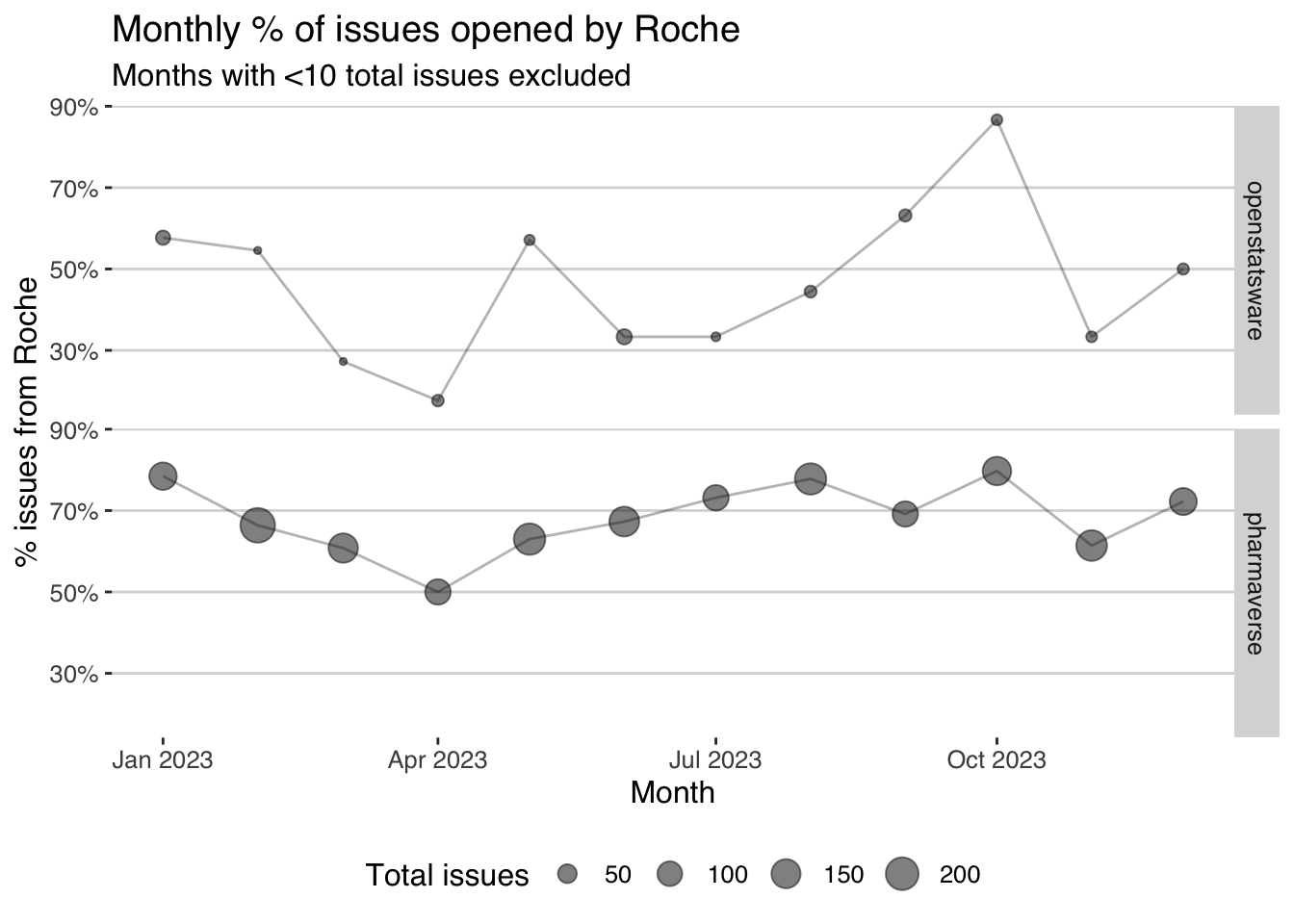

3.4.1 Issue and comments summary

There are 1808 issues and 6165 comments in the pharmaverse. There are 205 issues and 1530 in open statsware.

`summarise()` has grouped output by 'namespace'. You can override using the
`.groups` argument.

`summarise()` has grouped output by 'namespace'. You can override using the
`.groups` argument.

3.4.2 Issues and comments by package

`summarise()` has grouped output by 'full_name'. You can override using the
`.groups` argument.
`summarise()` has grouped output by 'full_name'. You can override using the
`.groups` argument.
`geom_line()`: Each group consists of only one observation. ℹ Do you need to
adjust the group aesthetic?
`geom_line()`: Each group consists of only one observation. ℹ Do you need to
adjust the group aesthetic?
`geom_line()`: Each group consists of only one observation. ℹ Do you need to
adjust the group aesthetic?

Issue and Comments from Roche vs External collaborators
Data is captured going back 12 months only.
Package	Roche + Externals		Roche
	Issues	Comments	% Issues	Issues trend1	% Comments	Comments trend1
pharmaverse
admiral	415	1680	51%		52%
admiraldev	85	238	38%		31%
admiralonco	35	86	77%		78%
admiralophtha	62	107	81%		80%
admiralvaccine	59	138	7%		7%
datacutr	19	34	100%		100%
falcon	47	95	49%		46%
metacore	8	14	12%		7%
metatools	5	17	20%		29%
pkglite	1	2	0%		0%
rtables	193	515	92%		91%
teal	127	592	80%		81%
teal.code	49	233	96%		98%
teal.data	72	253	85%		77%
teal.modules.clinical	77	264	81%		78%
teal.modules.general	57	158	77%		80%
teal.slice	209	1016	85%		79%
tern	187	385	97%		95%
xportr	101	338	15%		24%
openstatsware
brms.mmrm	44	214	0%		0%
crmPack	153	388	100%		100%
jmpost	76	244	100%		100%
mmrm	128	580	55%		54%
rbmi	10	37	60%		35%
simIDM	22	67	86%		94%
Our list of github handles of Roche employees may not be complete. Our data on when employed (if they joined or left Roche) is manually added, so may not be exact.
1 Trend in % coming from Roche over last 12 months.

4 Discussion

5 References

Anders Bilgrau, James Black, Estella Dong, and Tobias Krøgholt. 2023. “Rpact: Confirmatory Adaptive Clinical Trial Design and Analysis.” 2023. https://www.rpact.org.

Commission, European. 2022. REGULATION OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL on Horizontal Cybersecurity Requirements for Products with Digital Elements and Amending Regulation (EU) 2019/1020. https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:52022PC0454.

Consortium, R. 2023. “R Consortium Website.” 2023. https://www.r-consortium.org/.

NEST. 2023. “NEST Website.” 2023. https://insightsengineering.github.io/nest/.

openstatsware. 2023. “Openstatsware Website.” 2023. https://www.openstatsware.org/.

Pharma, Open Source in. 2023. “Osinpharma Website.” 2023. https://opensourceinpharma.com/.

pharmaverse. 2023. “Pharmaverse Website.” 2023. https://pharmaverse.org.

PhUSE. 2023. “PhUSE Open Source Guidance.” 2023. https://phuse-org.github.io/E2E-OS-Guidance/why.html.

Sabanés Bové, Daniel, Wai Yin Yeung, Giuseppe Palermo, and Thomas Jaki. 2019. “Model-Based Dose Escalation Designs in R with crmPack.” Journal of Statistical Software 89 (10): 1–22. https://doi.org/10.18637/jss.v089.i10.

Straub, Ben, Stefan Bundfuss, Jeffrey Dickinson, Ross Farrugia, Adam Forys, G Gayatri, Daphne Grasselly, et al. 2023. Admiral. https://pharmaverse.github.io/admiral/.
